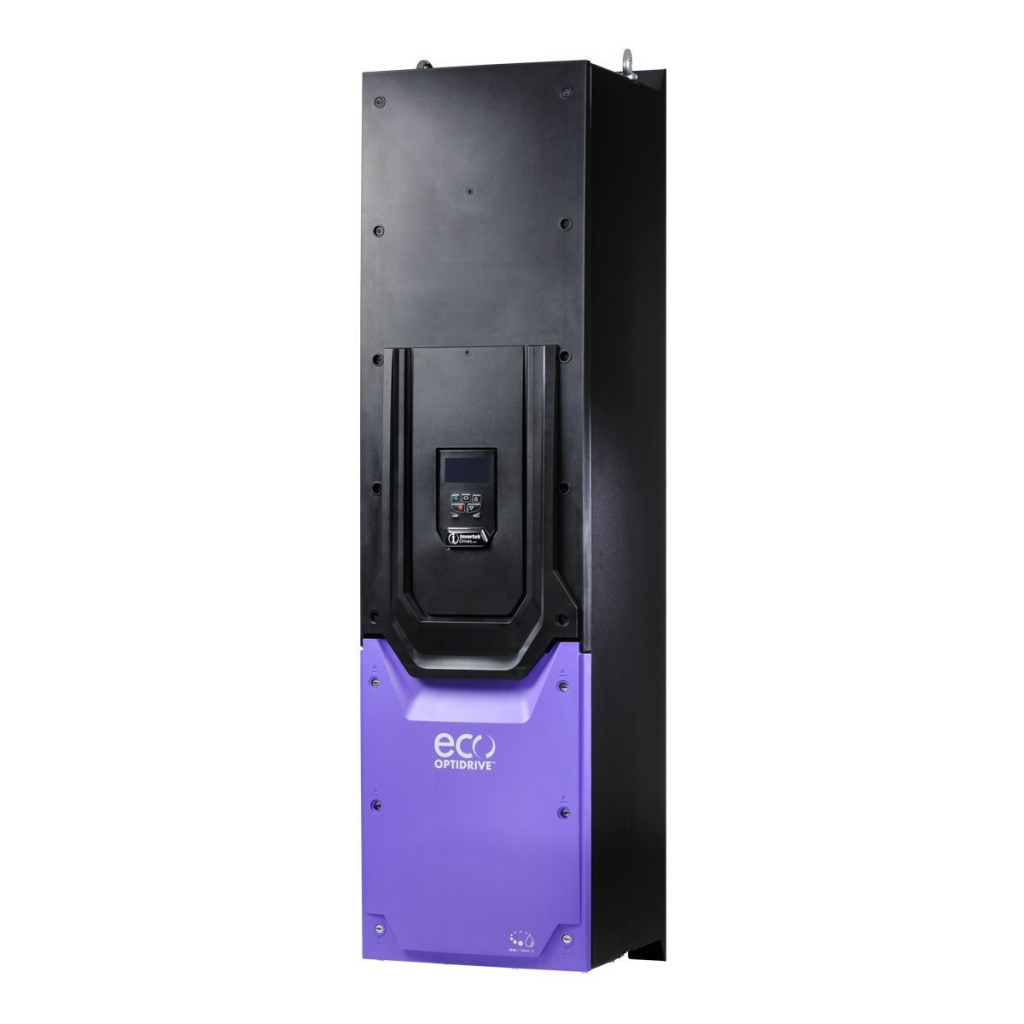

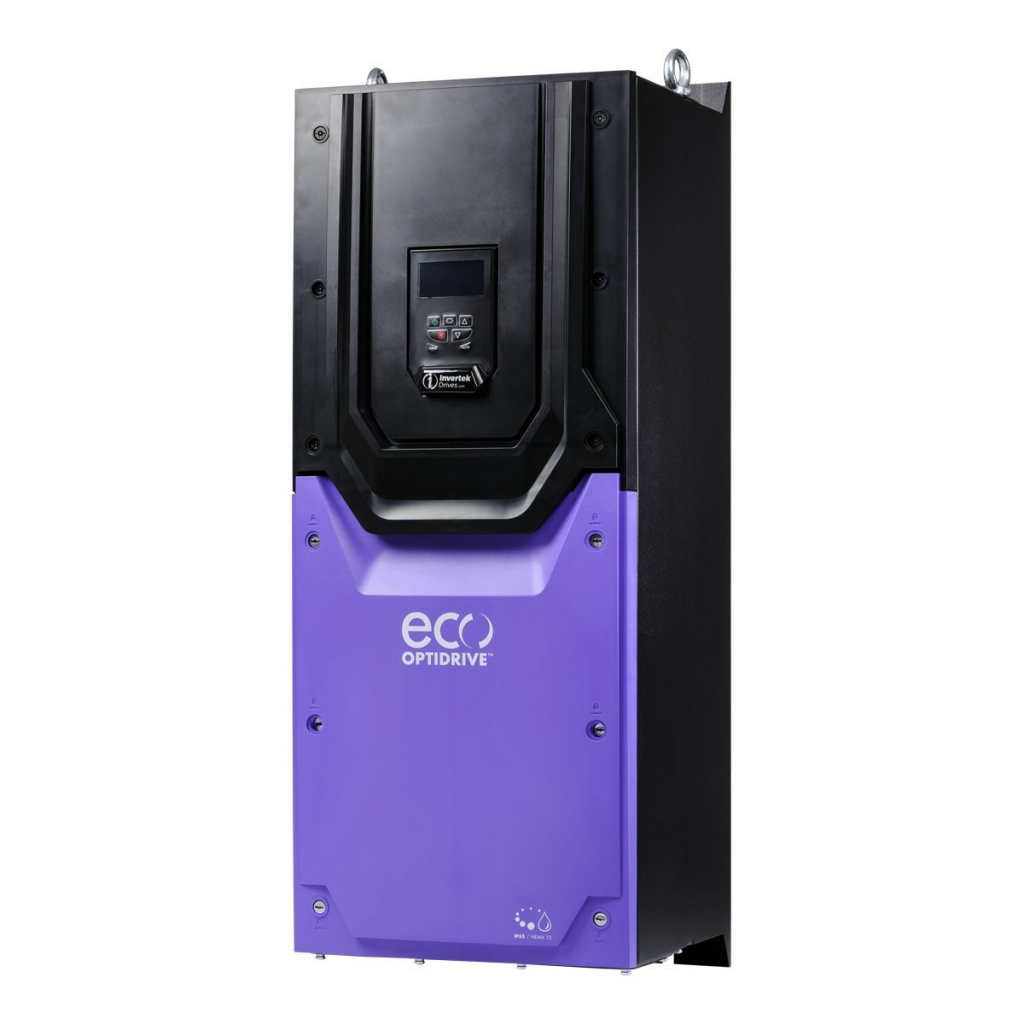

ODV-3-540900-3F12-MN | 45kW/90A | Variable frequency drive

$ 92.90

Please share our products!

Category:
Invertek ODV-3-540900-3F12-MN | 45kW/90A Variable frequency drive | 3Ph-3Ph | 380-480VAC | Optidrive Eco | 222x486x260mm | IP20 | 17kg | TFT Display Mains filter (EN61800-3 Cat. C1/C2) complies with EN-61800-3: 2004. Lower input current (iTHD <30%). smaller diameter of the cable and lighter switching material required. PLC Functionality. Automatic Sleep and wake up mode. Fire mode. Energy saving function. PID control. Standard ModBus RTU/BACNet. Capture function for 2 directions of rotation. String breakage and dry running detection. Cascade Control. Pump clean, Pump blockade and Pumpstir function. Safety stop according to IEC 61508 SIL2.
