ODV-3-642020-3F12-MN | 110kW/202A | Variable frequency drive

$ 98.47

Please share our products!

Category:

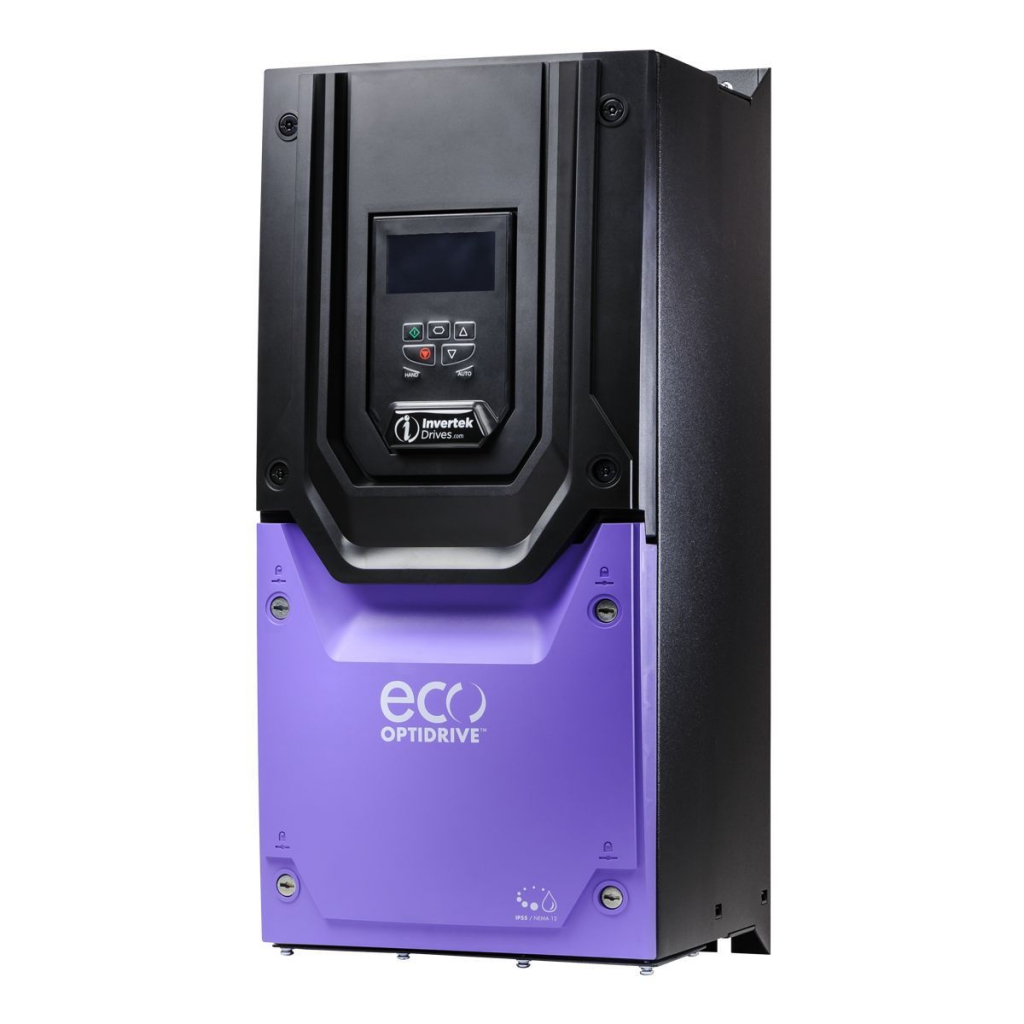

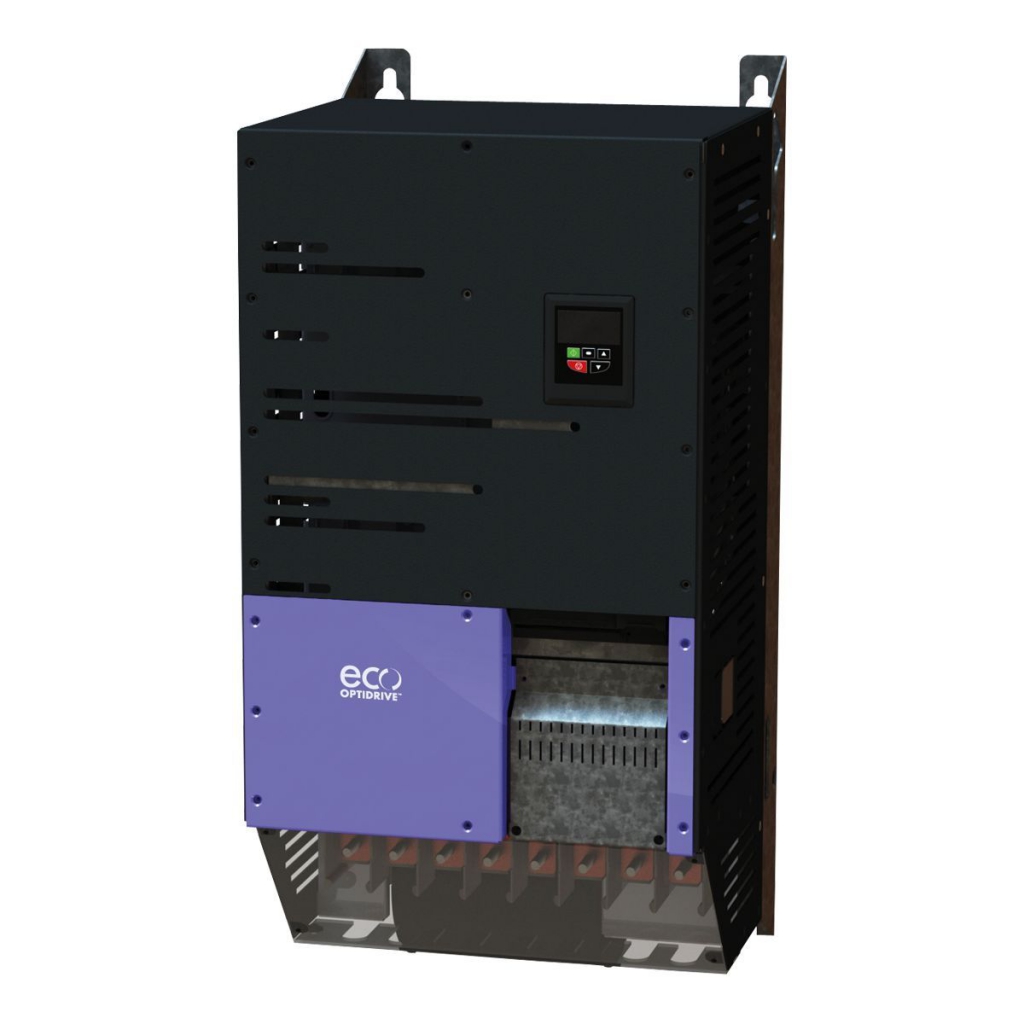

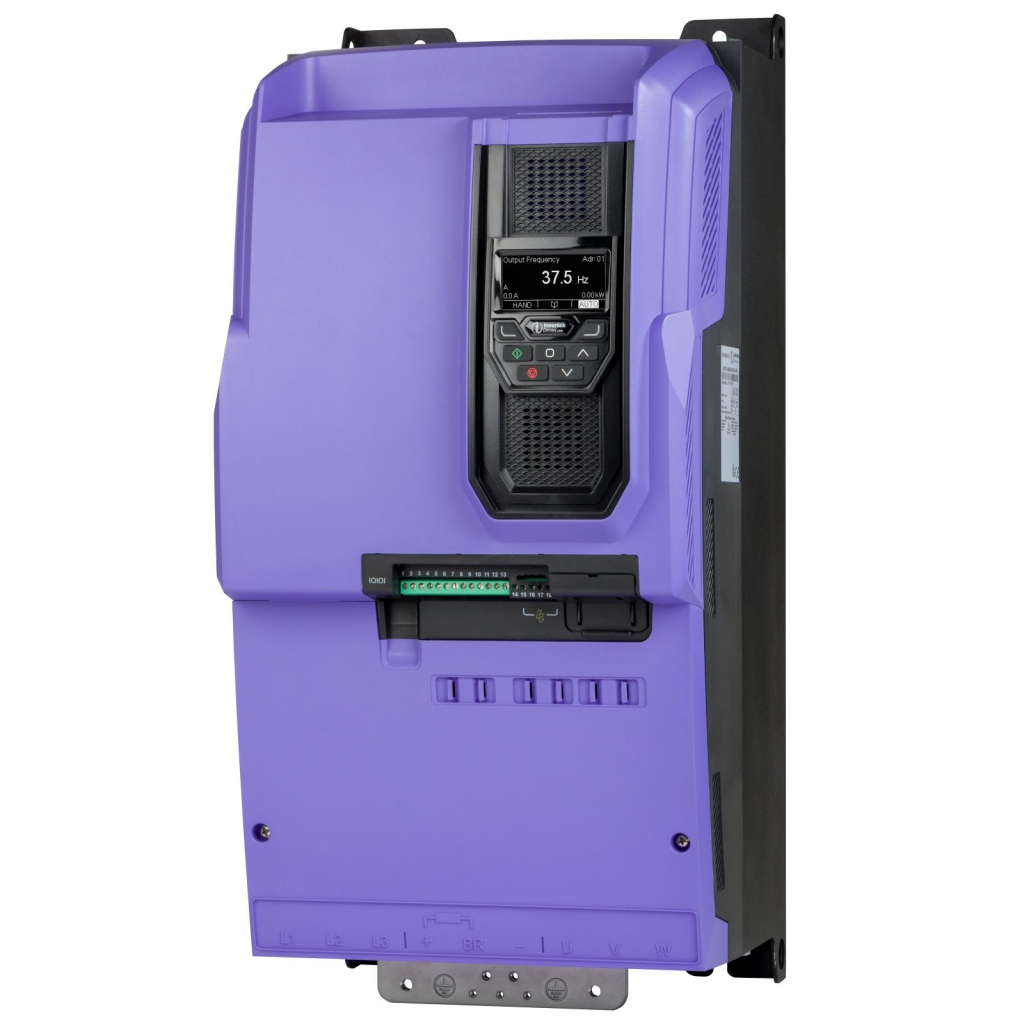

Invertek ODV-3-642020-3F12-MN | 110kW/202A Variable frequency drive | 3Ph-3Ph | 380-480VAC | Optidrive Eco | 330x726x320mm | IP20 | 43kg | TFT Display Mains filter (EN61800-3 Cat. C1/C2) complies with EN-61800-3: 2004. Lower input current (iTHD <30%). smaller diameter of the cable and lighter switching material required. PLC Functionality. Automatic Sleep and wake up mode. Fire mode. Energy saving function. PID control. Standard ModBus RTU/BACNet. Capture function for 2 directions of rotation. String breakage and dry running detection. Cascade Control. Pumpclean, Pumpblockade and Pumpstir function. Safety stop according to IEC 61508 SIL2.
