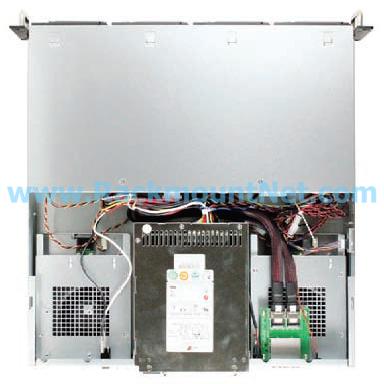

2U 12 x 3.5″ bay, SAS 6G JBOD w/ Single Expander and 500W Redundant Power Supply

Description Features 2U 12-Bay 6G JBOD is ideal for high-availability storage and high performance appliance. This 2U 12bay enclosure supports 6G expander modules for redundancy and 12 x 6G (backplane support) SAS/SATA hard disk bays. It’s the perfect appliance building-block for OEM/ODM and System Integrators. Enterprise JBOD High performance, redundancy & connectivity SAS interface supports High performance/availability SAS drives and high capacity/lower cost SATA drives in a single system, the flexibility to reduce total cost of ownership (true mix-and-match of drives in a single enclosure) Two 4-port connectors for host or expansion with automatic port speed detection and negotiation Scalable with expansion ports to couple with business growth Environment monitoring with SEP/SES support 6G expander modules and power supply, hot-swap drives and fans for high availability and easy maintenance Specifications Expander Chip: LSISAS2x28 Host Interface: Single Mini SAS 4x connector Expansion Interface: Single Mini SAS 4x connector Transfer Bandwidth: 2,400MB/s per connector Drive Interface: 3.0/6.0 Gb dual ported SAS, 1.5/3.0/6.0 Gb single ported SATA Drive RPM: Up to 15,000 Admin/Firmware Upgrade: In-band & Out-of-band, Serial port via Hyperterminal LED Indicators, Audible Alarm: Yes Cooling: 2 x hot-swap blowers Universal A/C Input: 100~240V AC full range
