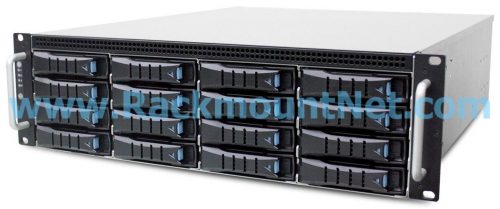

3U 16 x 3.5″ hot swap bays, Hot Swap Dual Controller JBOD with Single LSI 12G Expender Controller, 549W 80 Platinum RPS, Toolless Rail
$ 92.39

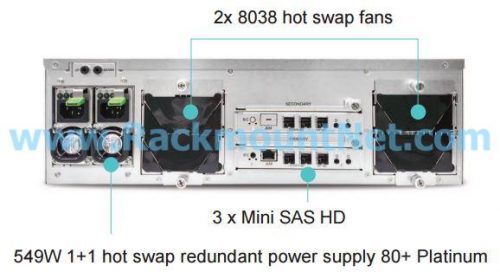

Description Features Intelligent Enclosure Management Individual drive power management Cutting edge performance and scalability Expander Self-discovery/Self-configuration (connects Mini SAS port to host or expansion) Supports SES-2 (SCSI Enclosure Service) Hot swap design for easy maintenance and management Tool-less drive trays (come with screw holes to adapt to 2.5†drives) Adjustable Thermal Profile Easy deployment Specifications Number of Expander: Single Expander Chip: LSI SAS3x28R Host/Expansion Interface: 3 x Mini SAS HD (SFF-8644) per expander module Drive Interface: 12Gb & 6Gb SAS/SATA Form Factor: 3.5†Admin/Firmware Upgrade: In-band & Serial port interface IEM port (Optional) LED indicators, Audible Alarm: Yes Drive Bays: 16 Cooling: 2 x 8038 hot swap fans Power Supply: 549W 1 1 hot swap redundant 80 Platinum Power Entry: Dual AC Inlet Expander Modules Dual expanders (Optional) Universal A/C Input: 100~240V AC full range Operating Environment: Temperature : 0ºC to 35ºC Relative humidity : 20% to 80% Non-operating Environment:Temperature : -20ºC to 60ºC Relative humidity : 10% to 90% Dimensions: (W x D x H) mm: 483 x 534 x 131; inches: 19 x 21 x 5.2 Gross Weight: kgs: 27; lbs: 61 Packing Dimensions: (W x D x H) mm: 595 x 785 x 338; inches: 23.4 x 30.9 x 13.3 Mounting: Standard 20″ tool-less slide rail
