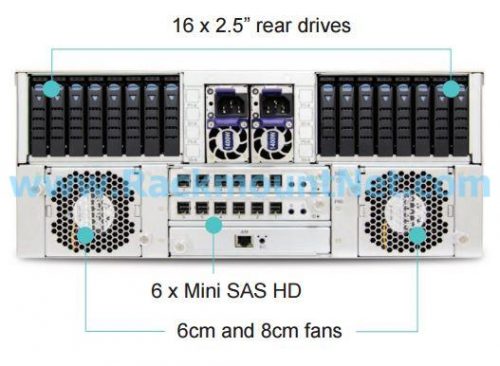

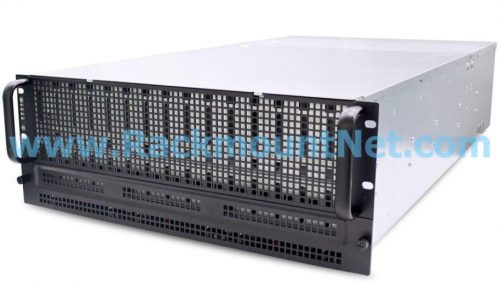

4u76 JBOD–4U 60 x 3.5″ and 16 x 2.5“ hot swap bays, hot swap JBOD with dual controller, 1400W 80 Platinum RPS, tool-less rail, IEMoption included
$ 97.95
Description Features Intelligent Enclosure Management Individual drive power management Cutting edge performance and scalability Expander Self-discovery/Self-configuration (connects Mini SAS port to host or expansion) Supports SES-2 (SCSI Enclosure Service) Hot swap design for easy maintenance and management Tool-less drive trays (come with screw holes to adapt to 2.5†drives) Adjustable Thermal Profile Easy deployment Specifications Number of Expander: Dual Expander Chip: LSI SAS3x36R Host/Expansion Interface: 3 x Mini SAS HD (SFF-8644) per expander module Drive Interface: 12Gb & 6Gb SAS/SATA Form Factor: 3.5†Admin/Firmware Upgrade: In-band & Serial port interface IEM port (Optional) LED indicators, Audible Alarm: Yes Drive Bays: 24 Cooling: 4 x 6038 hot swap fans Power Supply: 549W 1 1 hot swap redundant 80 Platinum Power Entry: Dual AC Inlet Expander Modules Dual expanders (Optional) Universal A/C Input: 100~240V AC full range Operating Environment: Temperature : 0ºC to 35ºC Relative humidity : 20% to 80% Non-operating Environment:Temperature : -20ºC to 60ºC Relative humidity : 10% to 90% Dimensions: (W x D x H) mm: 483 x 534 x 174.4; inches: 19 x 21 x 6.9 Gross Weight: kgs: 32; lbs: 72 Packing Dimensions: (W x D x H) mm: 591 x 851 x 378; inches: 23.2 x 33.5 x 14.9 Mounting: Standard 20″ tool-less slide rail
